The extraction equipment will customize the tank according to the customer’s requirements and the extraction object. Communicate the needs, and calculate the price after confirming the plan. The product price is not for reference, please contact us for the corresponding fee.
| Model | CTM-50 | CTM-100 | CTM-200 |
| Extraction tank volume (L) | 50 | 100 | 200 |
| Concentration tank volume (L) | 50 | 100 | 200 |
| Extraction tank jacket working pressure (Mpa) | Atmospheric pressure | ||
| Working pressure in extraction tank (Mpa) | Atmospheric pressure | ||
| Concentration tank vacuum degree (Mpa) | -0.08 | -0.08 | -0.08 |
| Extraction temperature °C | 100 | 100 | 100 |
| Concentration temperature °C | 50-65 | 50-65 | 50-65 |
| Power(KW) | 1000 | 1000 | 2000 |

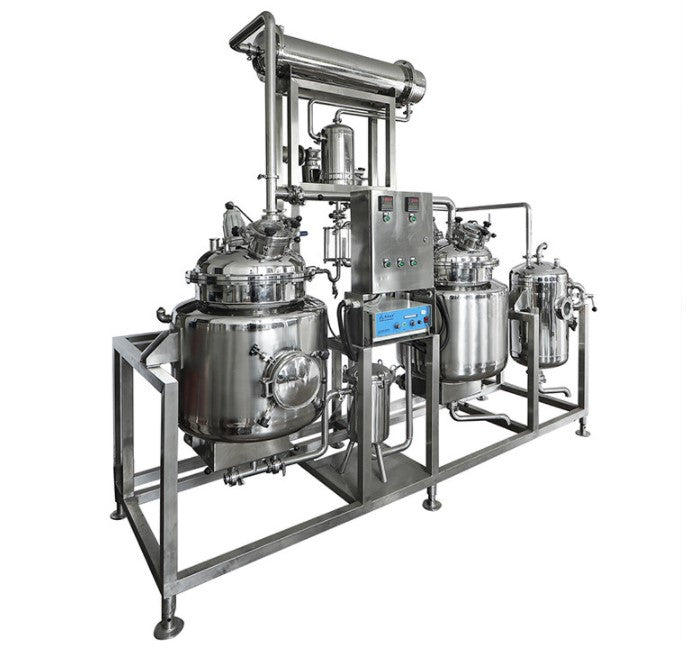

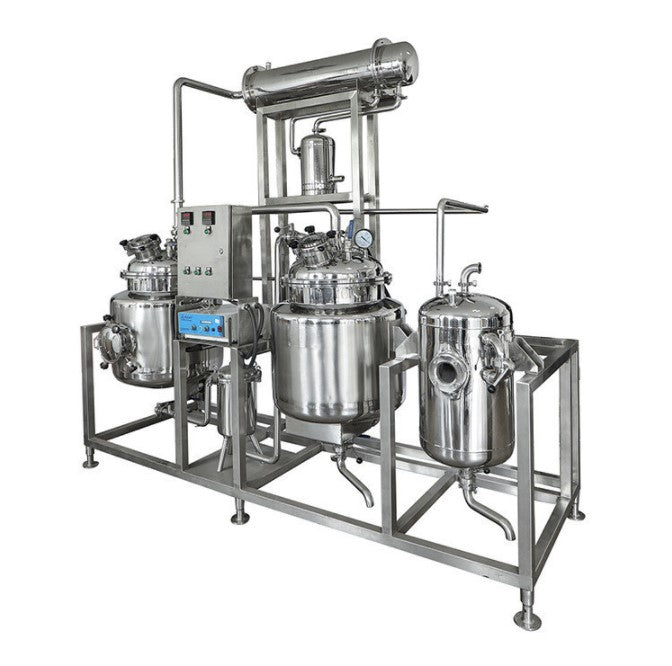

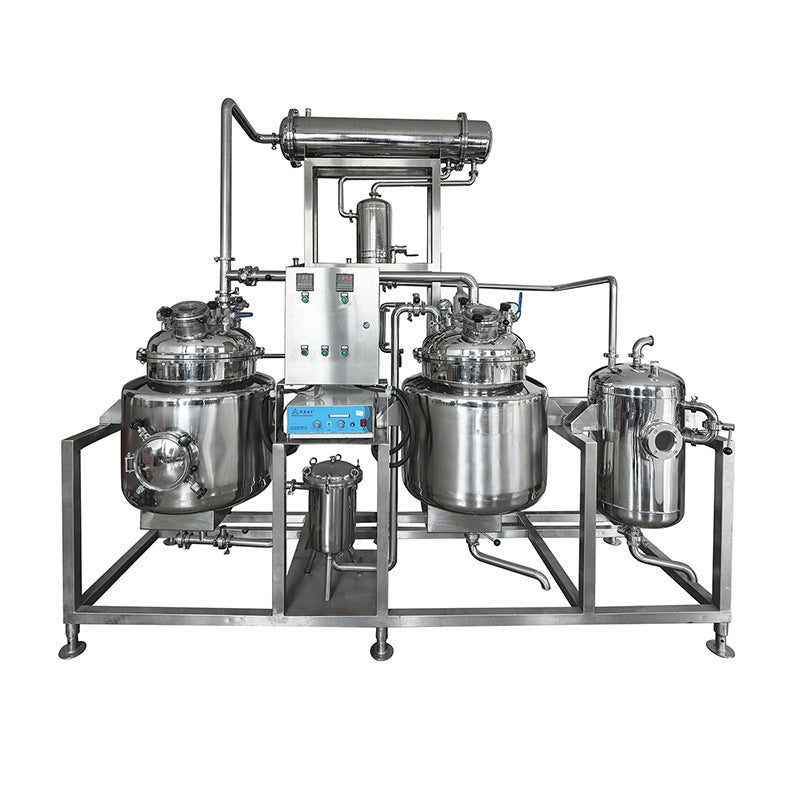

The extraction tank is a multi-purpose equipment designed for traditional Chinese medicine factories, boiling and extraction processes. It can extract, recover alcohol and separate volatile oil in this process. In addition to the main equipment of the extraction tank, this equipment is also equipped with a foam catcher, a cooler, an oil-water separator, etc. These devices are made of high-quality stainless steel wherever they come into contact with the drug. The extraction process of this equipment is completed in a sealed and recyclable system, and the organic solvent is recovered from the waste residue at the same time.
Advanced engineering design ensures high performance and reliability, reducing operational costs significantly.
Multiple safety protections including overload protection, emergency stop, safety guards, and fault detection systems.
PLC automatic control system with touchscreen interface, automated operation, and fault self-diagnosis.
Meeting the strictest global safety and quality standards with CE, ISO, and SGS certifications.
Space-saving design with integrated structure allows easy installation and minimal floor space requirements.
Round-the-clock technical support with global service network for lifetime maintenance.
