Product Application
Skin Packaging machine is to be placed on the printed board, the transparent membrane attached vacuum pumping after heating, the product is fixed to the transparent membrane attached on the cardboard, (heating, vacuum pumping is done automatically).
It is mainly used in hardware, all types of locks, tools, stationery, tableware, toys, auto parts and all kinds of commodities such as packaging. Skin packaged goods to moisture corrosion, transparent appearance, the machine can also be processed plastic enclosures.
The machine can also be used in the coating of the adhesive paper card after skin packaging.
Main Features
1. Special tubular heaters alignment for average heat distribution.
2. Fixed heater, instantly heating system, save energy.
3. Feed material way: front-in, right-out.
4. Small size to save space, can be worked with assembly line, enhancing efficiency.
5. The surface is deal with the parched lacquer.
6. High quality fittings, dependable quality.
7. Special dimension can be tailor-made
Machine Parts
1.High quality heating pipe.
2.Instantly heat with strong power.
3.Ensure the film to be heated evenly.
Film fram
Left feed-in and right feed-out model.Easy operation,low noise and no environment harmful smell produced
|
Model
|
SP-1100
|
|
Voltage
|
220V 380V/ 50~60Hz
|
|
Packaging Size(mm)
|
1100*600
|
|
Vacuum Pump Power
|
20m³/hour
|
|
Speed
|
3-4times /min
|
|
Machine Power
|
5KW
|
|
Dimension(mm)
|
1200*900*1400
|
|
Weight
|
400KG
|

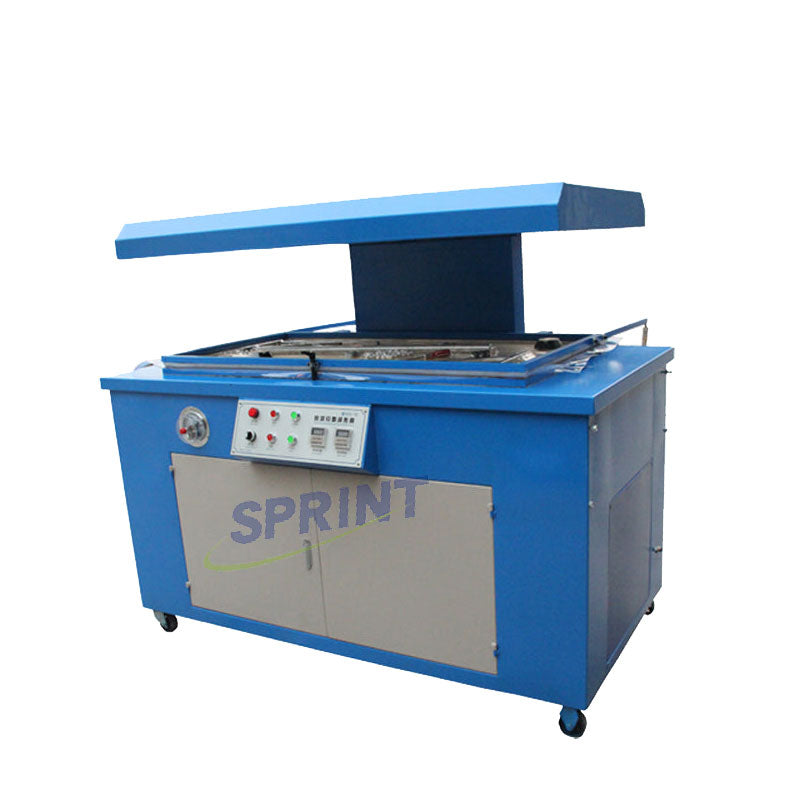

Skin Vacuum Packaging Machine
Advanced engineering design ensures high performance and reliability, reducing operational costs significantly.
Multiple safety protections including overload protection, emergency stop, safety guards, and fault detection systems.
PLC automatic control system with touchscreen interface, automated operation, and fault self-diagnosis.
Meeting the strictest global safety and quality standards with CE, ISO, and SGS certifications.
Space-saving design with integrated structure allows easy installation and minimal floor space requirements.
Round-the-clock technical support with global service network for lifetime maintenance.
